About

Description
  • 45g actuation force
  • 50g bottom out force
  • 2.0mm pretravel
  • 3.5mm total travel
  • POM stem
  • PC top housing
  • PA66 nylon with fiberglass bottom housing
  • KOS single-stage extended spring
  • Factory lubed - stem legs and stem sliders are covered with a very thin coat of 205g0. The spring and leaf are lubed with dry film

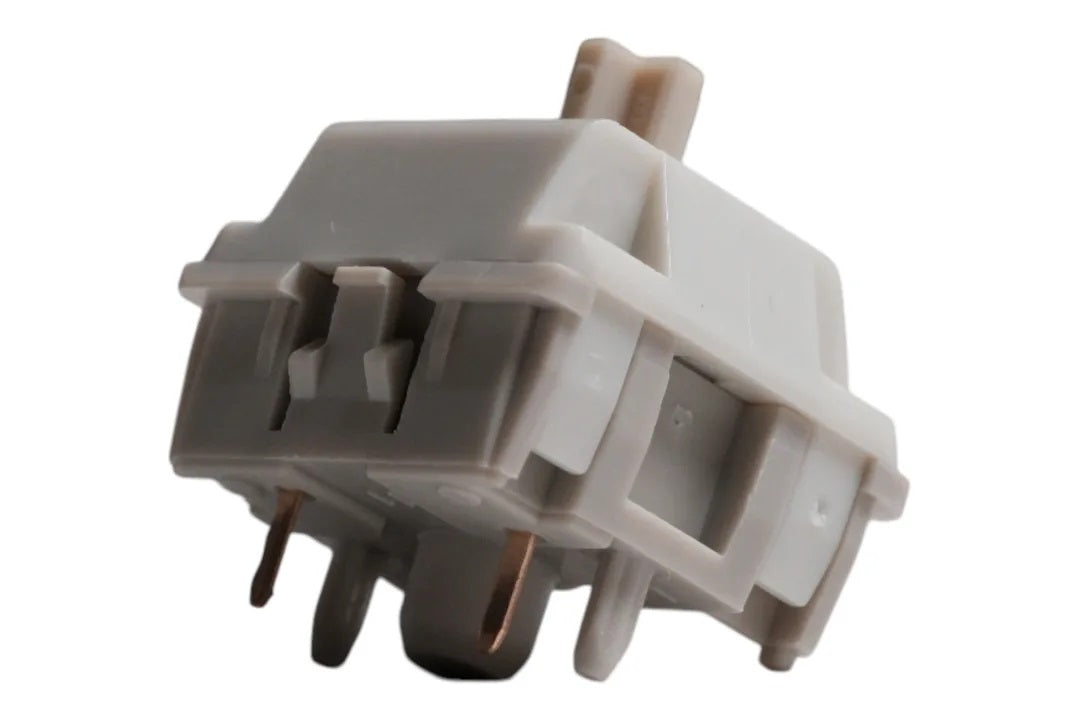

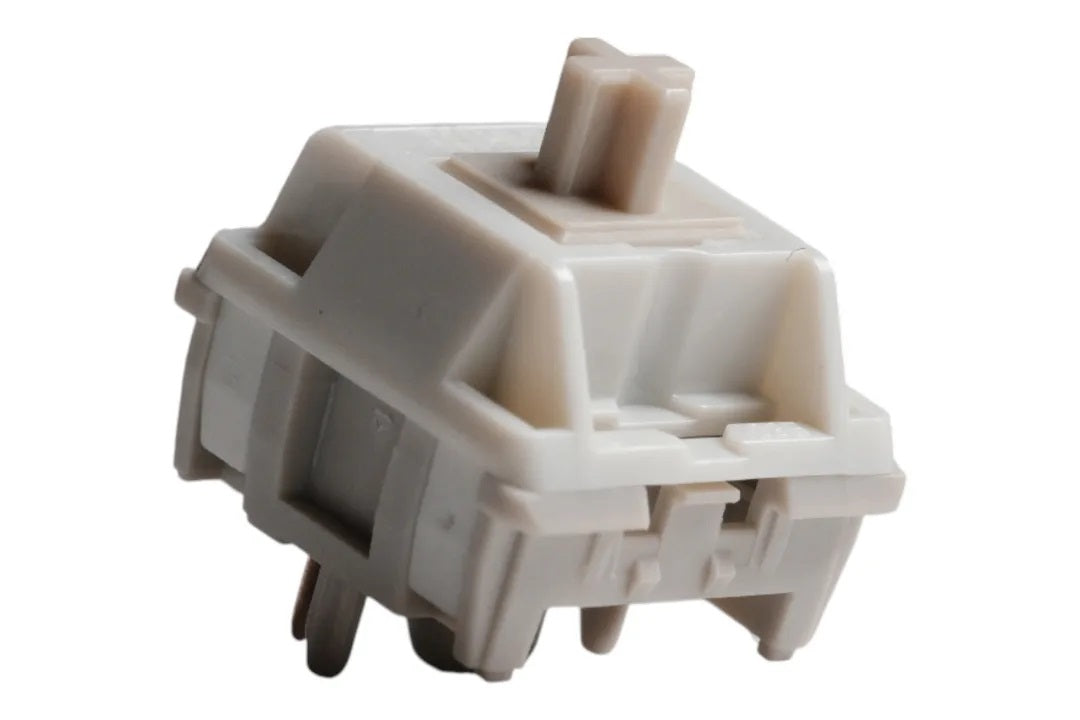

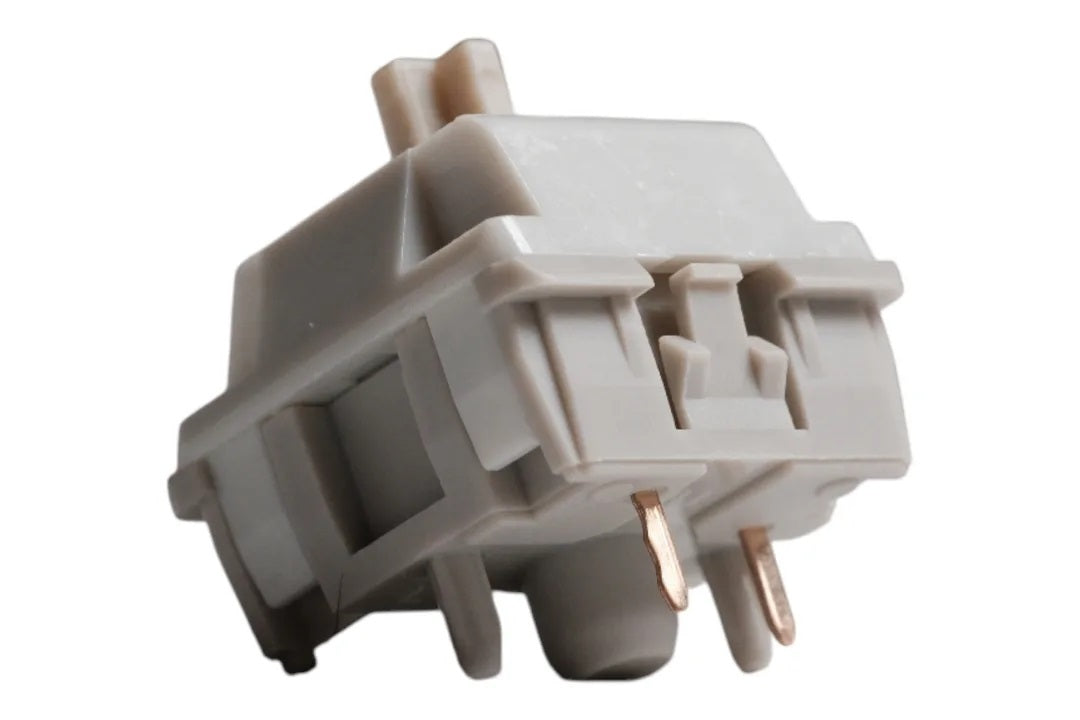

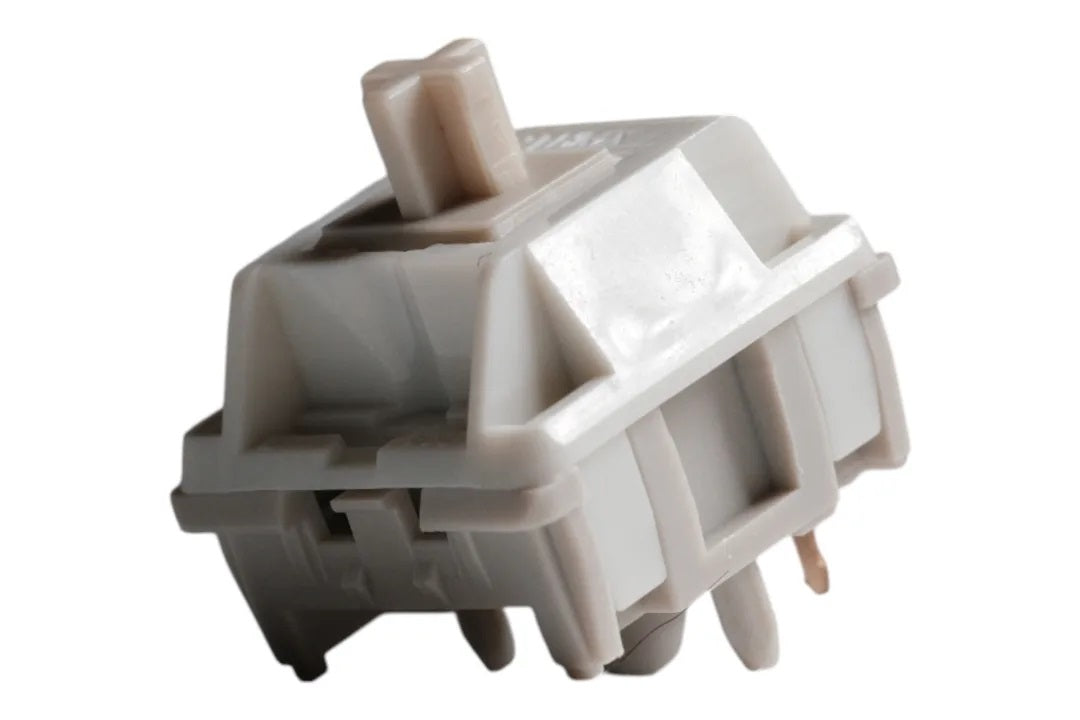

HMX Retro C Switches are linear switches that are a part of HMX's line of their own designed switches centered around vintage colorways. Retro C's is their approach to a clacky linear switch by incorporating fiberglass into the bottom housing to accentuate the sound.
Characteristics
Stem Type MX
Feel Linear
Mount Type PCB mount
Switch Pin Count 5
Actuation Force 45 cN
Bottom Out Force 50 cN
Force Variance 2 cN
Operating Position 2.0 mm
Full Travel 3.5 mm
Stem Material POM
Stem Color Beige
Top Housing Material Polycarbonate
Top Housing Color Off-White
Bottom Housing Material Nylon
Bottom Housing Color Off-White
Spring Length 22.0mm
Lubrication Lubed
SKU HMX_RetroC
Description
  • 45g actuation force
  • 50g bottom out force
  • 2.0mm pretravel
  • 3.5mm total travel
  • POM stem
  • PC top housing
  • PA66 nylon with fiberglass bottom housing
  • KOS single-stage extended spring
  • Factory lubed - stem legs and stem sliders are covered with a very thin coat of 205g0. The spring and leaf are lubed with dry film
HMX Retro C Switches are linear switches that are a part of HMX's line of their own designed switches centered around vintage colorways. Retro C's is their approach to a clacky linear switch by incorporating fiberglass into the bottom housing to accentuate the sound.
Characteristics
Stem Type MX
Feel Linear
Mount Type PCB mount
Switch Pin Count 5
Actuation Force 45 cN
Bottom Out Force 50 cN
Force Variance 2 cN
Operating Position 2.0 mm
Full Travel 3.5 mm
Stem Material POM
Stem Color Beige
Top Housing Material Polycarbonate
Top Housing Color Off-White
Bottom Housing Material Nylon
Bottom Housing Color Off-White
Spring Length 22.0mm
Lubrication Lubed
SKU HMX_RetroC
HMX by HMX

HMX Retro C 45g Linear PCB Mount Switch

$0.39
$0.39
$0.00
SKU: HMX_RetroC
Qty Discounts Available!
70+: 2% off, 90+: 3% off, 110+: 5% off
