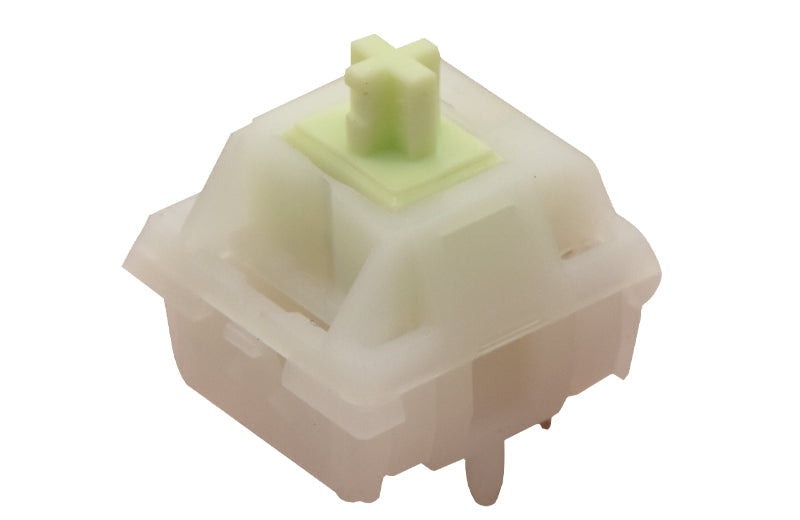

Keygeek Little Elf 42g Linear Plate Mount Switch MKFPPUMQZF |0|
    Keygeek Little Elf 42g Linear Plate Mount Switch MKFPPUMQZF |0|
Keygeek Little Elf 42g Linear Plate Mount Switch MKFPPUMQZF |0|
Keygeek Little Elf 42g Linear Plate Mount Switch MKFPPUMQZF |0|
    Keygeek Little Elf 42g Linear Plate Mount Switch MKFPPUMQZF |0|
Keygeek Little Elf 42g Linear Plate Mount Switch MKFPPUMQZF |0|

About

Description
  • 42g actuation force
  • 50g bottom out force
  • 2.0mm pretravel
  • 3.6mm total travel
  • U5 UPE stem
  • PA6 top housing
  • PA12 nylon bottom housing
  • 21mm single-stage Japanese wire spring
  • Factory lubed
The Keygeek little elf switch features a deep and thocky sound profile. The little elf is the deepest sounding among the keygeek switches that come with the 7-sphere stem tip. Not only because of the unique stem design, but also because its stem and bottom housing are made of soft materials such as U5 and PA12, which dampen the overall volume and pitch.
Characteristics
Stem Type MX
Feel Linear
Mount Type PCB mount
Switch Pin Count 5
Actuation Force 42 cN
Bottom Out Force 50 cN
Force Variance 5 cN
Operating Position 2.0 mm
Full Travel 3.6 mm
Stem Material UPE
Stem Color Green
Top Housing Material Nylon
Top Housing Color Clear
Bottom Housing Material Nylon
Bottom Housing Color Clear
Spring Length 21.0mm
Lubrication Lubed
SKU KG_LtlElf42
Description
  • 42g actuation force
  • 50g bottom out force
  • 2.0mm pretravel
  • 3.6mm total travel
  • U5 UPE stem
  • PA6 top housing
  • PA12 nylon bottom housing
  • 21mm single-stage Japanese wire spring
  • Factory lubed
The Keygeek little elf switch features a deep and thocky sound profile. The little elf is the deepest sounding among the keygeek switches that come with the 7-sphere stem tip. Not only because of the unique stem design, but also because its stem and bottom housing are made of soft materials such as U5 and PA12, which dampen the overall volume and pitch.
Characteristics
Stem Type MX
Feel Linear
Mount Type PCB mount
Switch Pin Count 5
Actuation Force 42 cN
Bottom Out Force 50 cN
Force Variance 5 cN
Operating Position 2.0 mm
Full Travel 3.6 mm
Stem Material UPE
Stem Color Green
Top Housing Material Nylon
Top Housing Color Clear
Bottom Housing Material Nylon
Bottom Housing Color Clear
Spring Length 21.0mm
Lubrication Lubed
SKU KG_LtlElf42
Keygeek by Keygeek

Keygeek Little Elf 42g Linear Plate Mount Switch

$0.35
$0.35
$0.00
SKU: KG_LtlElf42
Qty Discounts Available!
70+: 2% off, 90+: 3% off, 110+: 5% off
