Description
- 36g initial force
- 50g bottom out force
- 3.5mm total travel
- 120Gs initial magnetic flux
- 700Gs bottom out magnetic flux

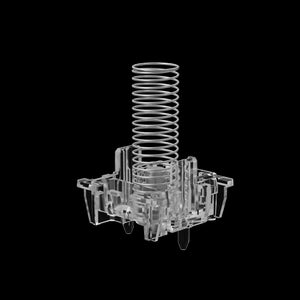

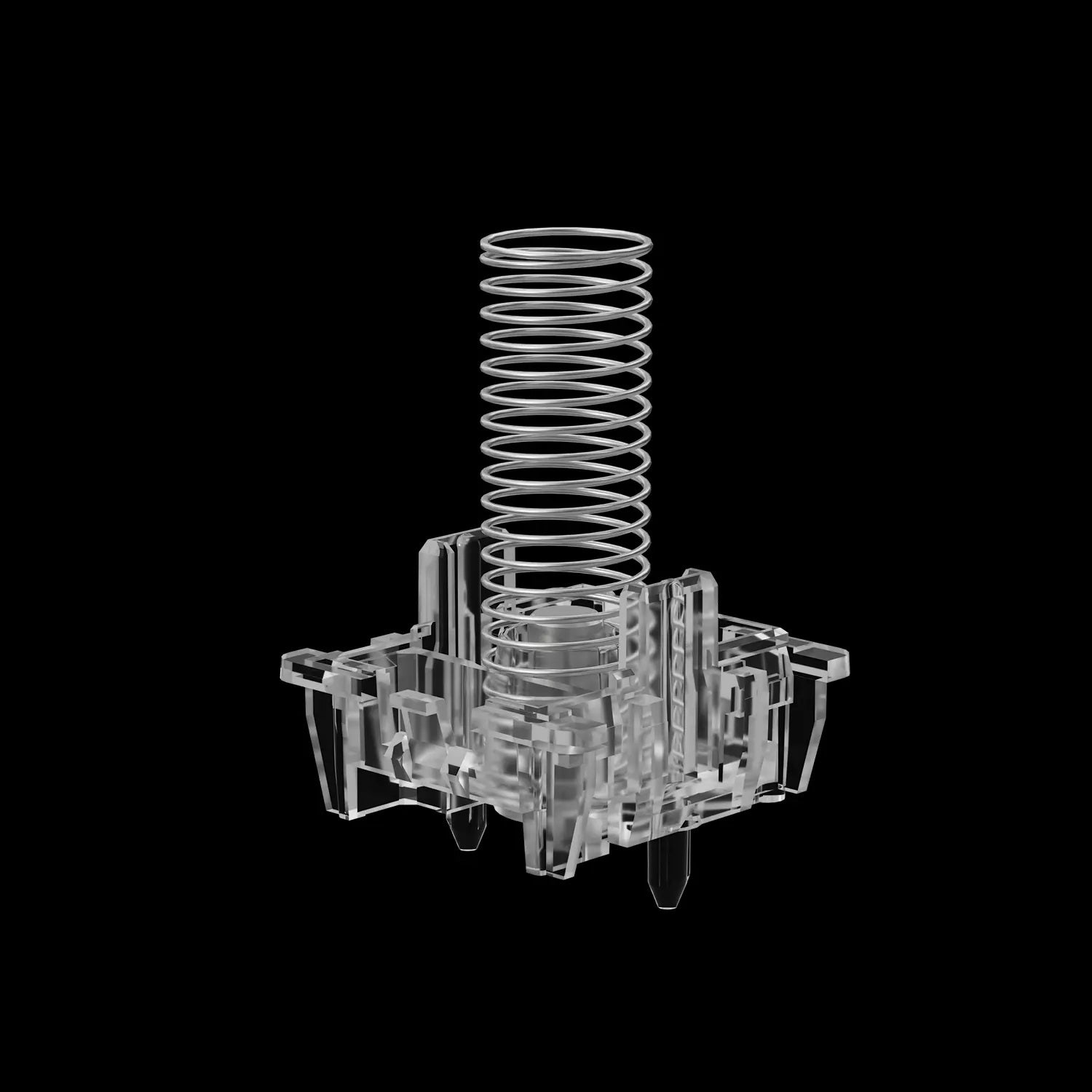

- 20mm spring
- Dual rail stem guide
- High temperature resistant magnets
This switch uses magnets and sensors instead of physical contacts to process actuations, creating a much smoother keypress without bounce or chatter. The adjustable actuation point is determined not by location but by distance traveled.
It requires special PCBs and is not compatible with regular mechanical keyboards. Due to manufacturing differences, this switch may not be compatible with all magnetic or Hall Effect keyboards.
It requires special PCBs and is not compatible with regular mechanical keyboards. Due to manufacturing differences, this switch may not be compatible with all magnetic or Hall Effect keyboards.
Characteristics
Stem Type
MX
Feel
Linear
Mount Type
Plate mount
Bottom Out Force
50 cN
Force Variance
10 cN
Full Travel
3.5 mm
Magnetic
Yes
Operations
150 million
Stem Color
Clear
Top Housing Color
Clear
Bottom Housing Color
Clear
SKU
KS-20SF10B045NW-D378
Description
- 36g initial force
- 50g bottom out force
- 3.5mm total travel
- 120Gs initial magnetic flux
- 700Gs bottom out magnetic flux
- 20mm spring
- Dual rail stem guide
- High temperature resistant magnets
This switch uses magnets and sensors instead of physical contacts to process actuations, creating a much smoother keypress without bounce or chatter. The adjustable actuation point is determined not by location but by distance traveled.
It requires special PCBs and is not compatible with regular mechanical keyboards. Due to manufacturing differences, this switch may not be compatible with all magnetic or Hall Effect keyboards.
It requires special PCBs and is not compatible with regular mechanical keyboards. Due to manufacturing differences, this switch may not be compatible with all magnetic or Hall Effect keyboards.
Characteristics
Stem Type
MX
Feel
Linear
Mount Type
Plate mount
Bottom Out Force
50 cN
Force Variance
10 cN
Full Travel
3.5 mm
Magnetic
Yes
Operations
150 million
Stem Color
Clear
Top Housing Color
Clear
Bottom Housing Color
Clear
SKU
KS-20SF10B045NW-D378
Gateron
by
Gateron
Gateron Magnetic Jade Air Linear Switch
- Regular price
- $0.85
- Sale price
- $0.85
- Regular price
-
$0.00
In Stock
Available for Pre-Order!
Couldn't load pickup availability
SKU: KS-20SF10B045NW-D378

Qty Discounts Available!
70+: 2% off, 90+: 3% off, 110+: 5% off
