Description
- 2 actuation forces to choose from: 40g, 45g, and 48g
- 40g actuation force has 48g bottom out force
- 45g actuation force has 53g bottom out force
- 48g actuation force has 57g bottom out force
- 2.0mm pretravel
- 3.6mm total travel
- M4 POM stem
- PA12 nylon top housing
- N1 nylon bottom housing with 10% fibergalss
- Factory lubed
- 20mm single-stage Japanese spring
Characteristics
Stem Type
MX
Feel
Linear
Mount Type
PCB mount
Switch Pin Count
5
Force Variance
5 cN
Operating Position
2.0 mm
Full Travel
3.6 mm
Stem Material
POM
Stem Color
Orange
Top Housing Material
Nylon
Top Housing Color
Off-White
Bottom Housing Material
Nylon
Bottom Housing Color
Orange
Spring Length
20mm
Lubrication
Lubed
40g
KG-ORGBOI-40
45g
KG-ORGBOI-45
48g
KG-ORGBOI-48
Description
- 2 actuation forces to choose from: 40g, 45g, and 48g
- 40g actuation force has 48g bottom out force
- 45g actuation force has 53g bottom out force
- 48g actuation force has 57g bottom out force
- 2.0mm pretravel
- 3.6mm total travel
- M4 POM stem
- PA12 nylon top housing
- N1 nylon bottom housing with 10% fibergalss
- Factory lubed
- 20mm single-stage Japanese spring
Characteristics
Stem Type
MX
Feel
Linear
Mount Type
PCB mount
Switch Pin Count
5
Force Variance
5 cN
Operating Position
2.0 mm
Full Travel
3.6 mm
Stem Material
POM
Stem Color
Orange
Top Housing Material
Nylon
Top Housing Color
Off-White
Bottom Housing Material
Nylon
Bottom Housing Color
Orange
Spring Length
20mm
Lubrication
Lubed
40g
KG-ORGBOI-40
45g
KG-ORGBOI-45
48g
KG-ORGBOI-48
Keygeek
by
Keygeek

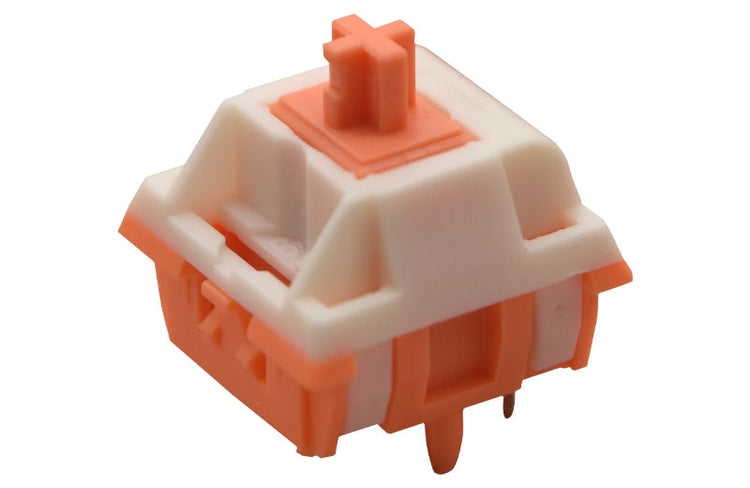

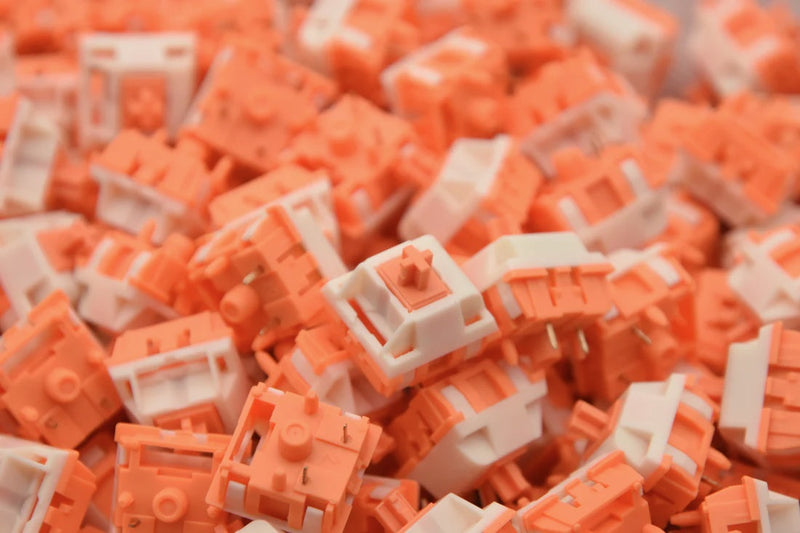

Keygeek Orange Boi Linear Switch
- Regular price
- $0.35
- Sale price
- $0.35
- Regular price
-
$0.00
In Stock
Available for Pre-Order!
Couldn't load pickup availability
SKU: KG-ORGBOI-48
Qty Discounts Available!
70+: 2% off, 90+: 3% off, 110+: 5% off
