About

Description

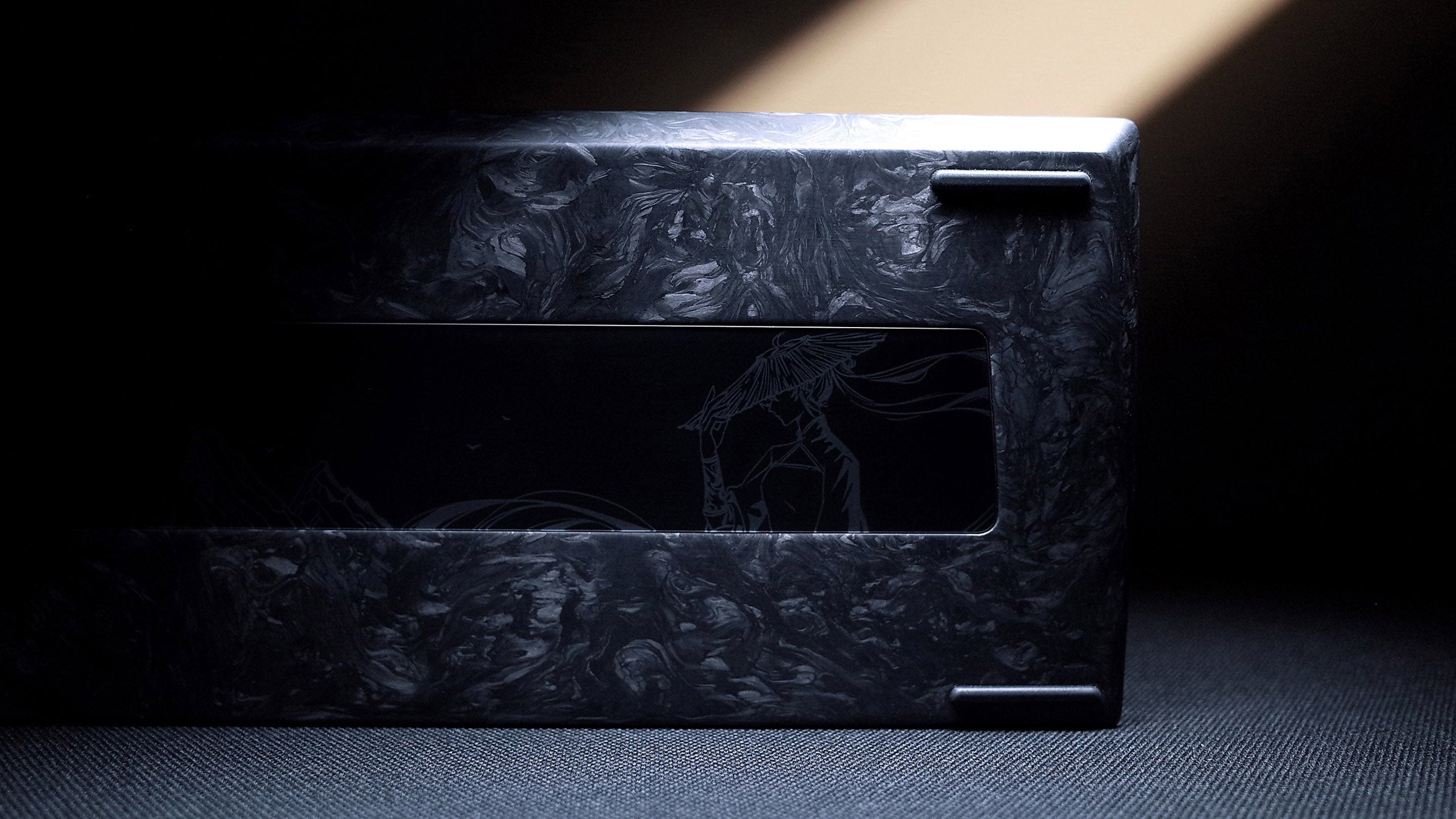

  • Black, seamless CNC-forged carbon fiber case gives each keyboard a one-of-a-kind texture
  • Gasket mount design with demagnetized screws
  • Custom AG glass nameplate
  • Custom Hall Effect switches from Gateron and TTC
  • 8000Hz polling rate with a latency as low as 0.125ms
  • Programmable with web based WL software
  • Hotswap PCB with advanced waterproof nano-coating to provide splash resistance and anti-oxidation
  • Poron sandwich foam and bottom foam sound absorption
  • RGB backlighting
  • Aluminum plate
  • Black has black translucent PC keycaps with white legends
  • White has Double Shot PBT keycaps with Dye Sub
  • All US import tariffs are prepaid by MK and already included in the price. For more info, please see our FAQ.
The WLMOUSE Ying75 keyboard uses custom Gateron Nightfall and TTC Shadow magnetic switches. These switches use magnets and sensors instead of physical contacts to process actuations, creating a much smoother keypress without bounce or chatter. The adjustable actuation point is determined not by location but by distance travelled.

Magnetic Switch Functionality:
End: Trigger a different action upon releasing the key.
DKS: Assign up to four actions at different levels of key actuation.
TGL: Tap a key to toggle repeat functionality, and hold it for the standard action.
MPT: Set three different actions for one key, each triggered at various actuation levels.
MT: Configure two distinct functions for any key—one for tapping and another for holding.
SOCD: Fast input transitions by instantly triggering directional changes when switching between opposing keys (e.g. A / D), without needing to fully release the first key.
Macros: Bind complex macros to any key, allowing you to execute a series of commands or actions with a single press.

Gateron Nightfall
- Linear
- 36g initial force
- 3.5mm total travel
- reduced stem wobble

TTC Shadow
- Linear
- 36g initial force
- 3.4mm total travel

Includes:
- zippered carrying case
- USB-C cable
- cleaning brush
- user manual
- keycap and switch puller
- 4* additional Magnetic Jade Pro switches
Characteristics
Size 75%
Key Count 84 keys
Logical Layout US QWERTY
Color Black
Physical Layout ANSI
Top Material Carbon Fiber
Switch Mount Type Plate mount
Interface USB-C
Windows Compatible Yes
Bottom Material Carbon Fiber
Mac Compatible Yes
Backlighting RGB / All LED
Hotswap Yes
Plate Material Aluminum
Switch Direction South Facing
PCB Type Magnetic / Hall Effect
Keyboard Cord Connection (Keyboard Side) USB-C
Keyboard Cord Connection (Device Side) USB-A
Max Polling Rate 8000Hz.
Black Gateron Nightfall KBD-YING75-HEI-G
Black TTC Shadow KBD-YING75-HEI-TTC
White Gateron Nightfall KBD-YING75-BAI-G
White TTC Shadow KBD-YING75-BAI-TTC
