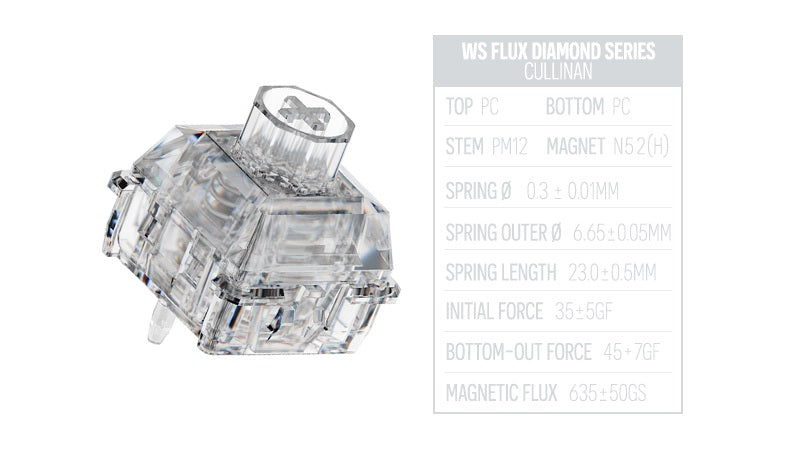

About
Description
- 35g initial force
- 45g bottom out force
- 115Gs initial magnetic flux
- 635Gs bottom out magnetic flux
- 3.5mm total travel
- PM12 stem
- PC top and bottom housing
- 23mm spring

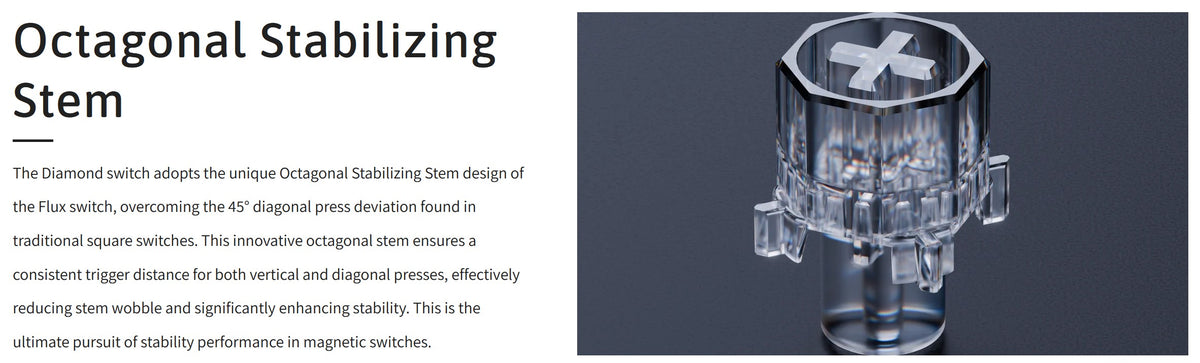

- Unique octagonal stem structure with 360° reinforced housing
- Factory lubed

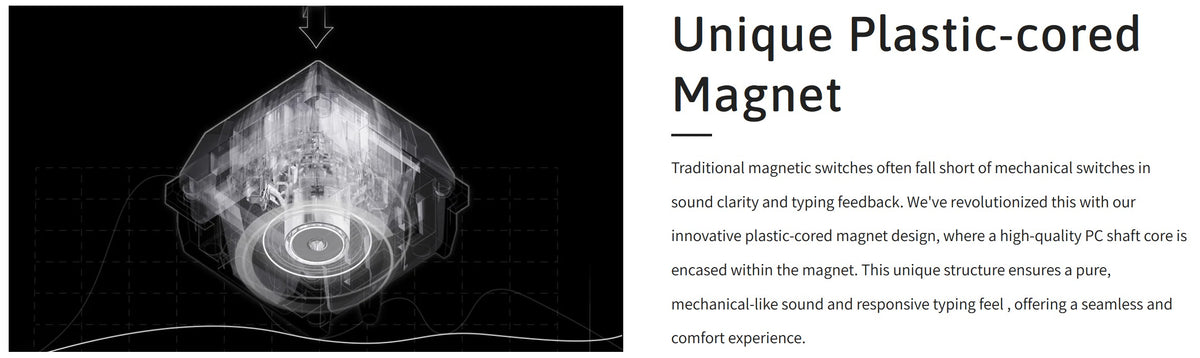

Named after the “King of Diamonds,” Cullinan, this switch draws inspiration from multi-faceted diamond cuts, embodying precision, brilliance, and a refined tactile experience. We've revolutionized the magnet on the switch with our innovative plastic-cored magnet design, where a high-quality PC shaft core is encased within the magnet. This unique structure ensures a pure, mechanical-like sound and responsive typing feel , offering a seamless and comfort experience.
Sound Test
Characteristics
Stem Type
MX
Feel
Linear
Mount Type
Plate mount
Bottom Out Force
45 cN
Force Variance
5 cN
Initial Magnetic Flux
115Gs
Bottom Out Magnetic Flux
635Gs
Full Travel
3.5 mm
Magnetic
Yes
Operations
100 million
Stem Color
Clear
Top Housing Material
Polycarbonate
Top Housing Color
Clear
Bottom Housing Material
Polycarbonate
Bottom Housing Color
Clear
Spring Length
23mm
Lubrication
Lubed
Series
Flux Diamond
SKU
WS-FluxDmdCullinan
Description
- 35g initial force
- 45g bottom out force
- 115Gs initial magnetic flux
- 635Gs bottom out magnetic flux
- 3.5mm total travel
- PM12 stem
- PC top and bottom housing
- 23mm spring
- Unique octagonal stem structure with 360° reinforced housing
- Factory lubed
Named after the “King of Diamonds,” Cullinan, this switch draws inspiration from multi-faceted diamond cuts, embodying precision, brilliance, and a refined tactile experience. We've revolutionized the magnet on the switch with our innovative plastic-cored magnet design, where a high-quality PC shaft core is encased within the magnet. This unique structure ensures a pure, mechanical-like sound and responsive typing feel , offering a seamless and comfort experience.
Sound Test
Characteristics
Stem Type
MX
Feel
Linear
Mount Type
Plate mount
Bottom Out Force
45 cN
Force Variance
5 cN
Initial Magnetic Flux
115Gs
Bottom Out Magnetic Flux
635Gs
Full Travel
3.5 mm
Magnetic
Yes
Operations
100 million
Stem Color
Clear
Top Housing Material
Polycarbonate
Top Housing Color
Clear
Bottom Housing Material
Polycarbonate
Bottom Housing Color
Clear
Spring Length
23mm
Lubrication
Lubed
Series
Flux Diamond
SKU
WS-FluxDmdCullinan
Wuque Studio
by
Wuque Studio
Wuque Studio Flux Cullinan Linear Plate Mount Magnetic HE Switch
- Regular price
- $2.00
- Sale price
- $2.00
- Regular price
-
$0.00
In Stock
Available for Pre-Order!
Couldn't load pickup availability
SKU: WS-FluxDmdCullinan
Qty Discounts Available!
70+: 3% off, 90+: 4% off, 110+: 5% off
